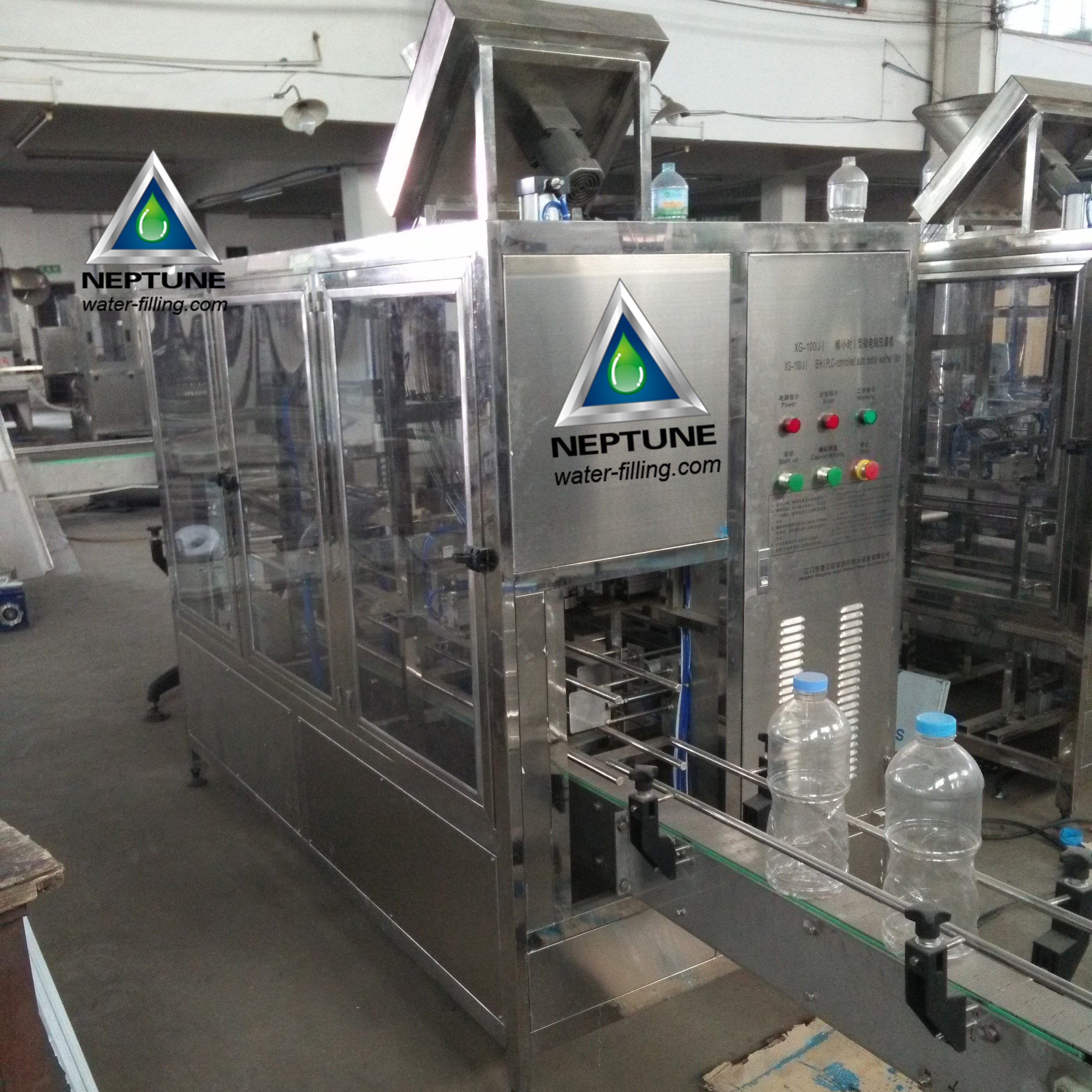

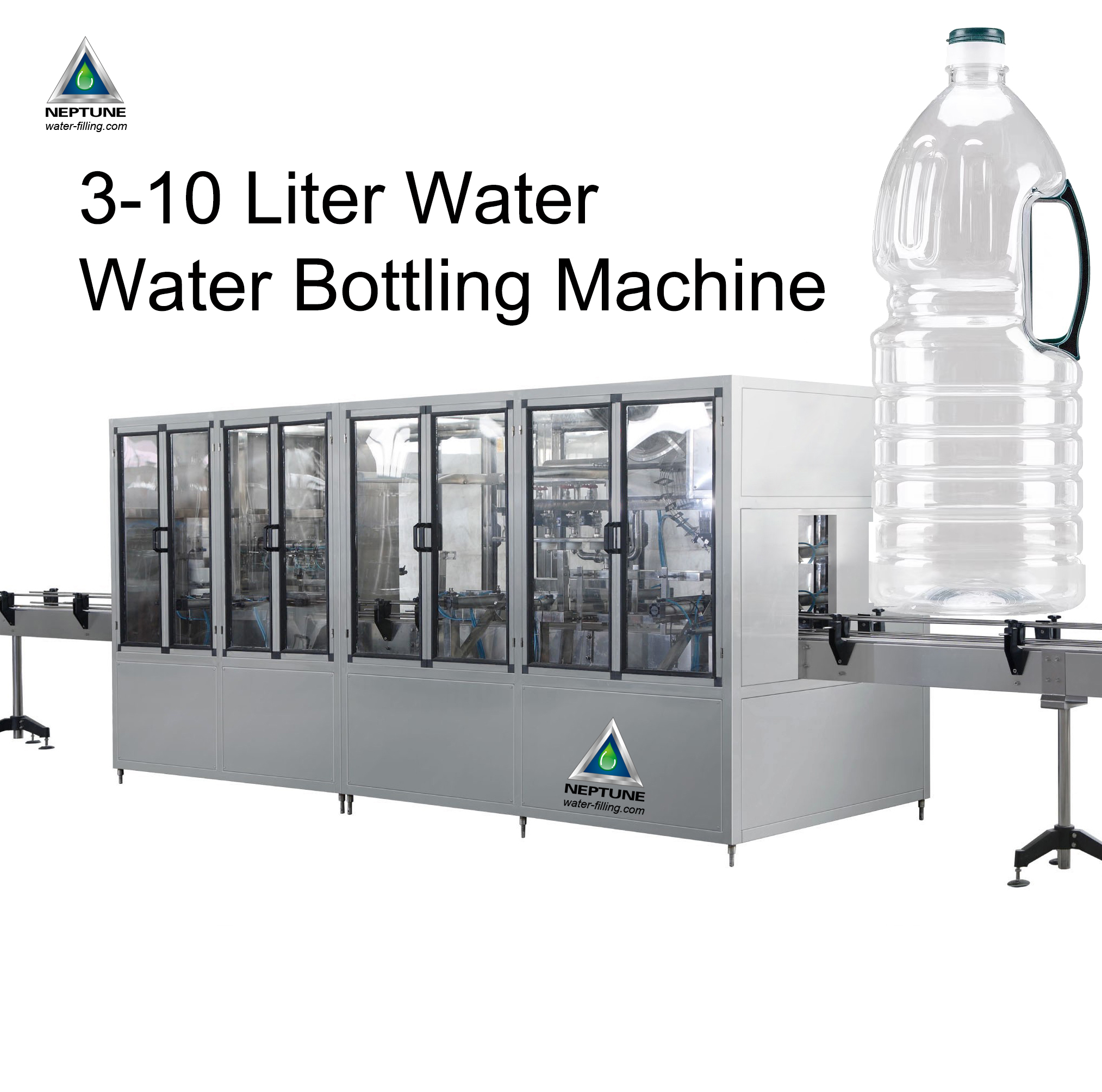

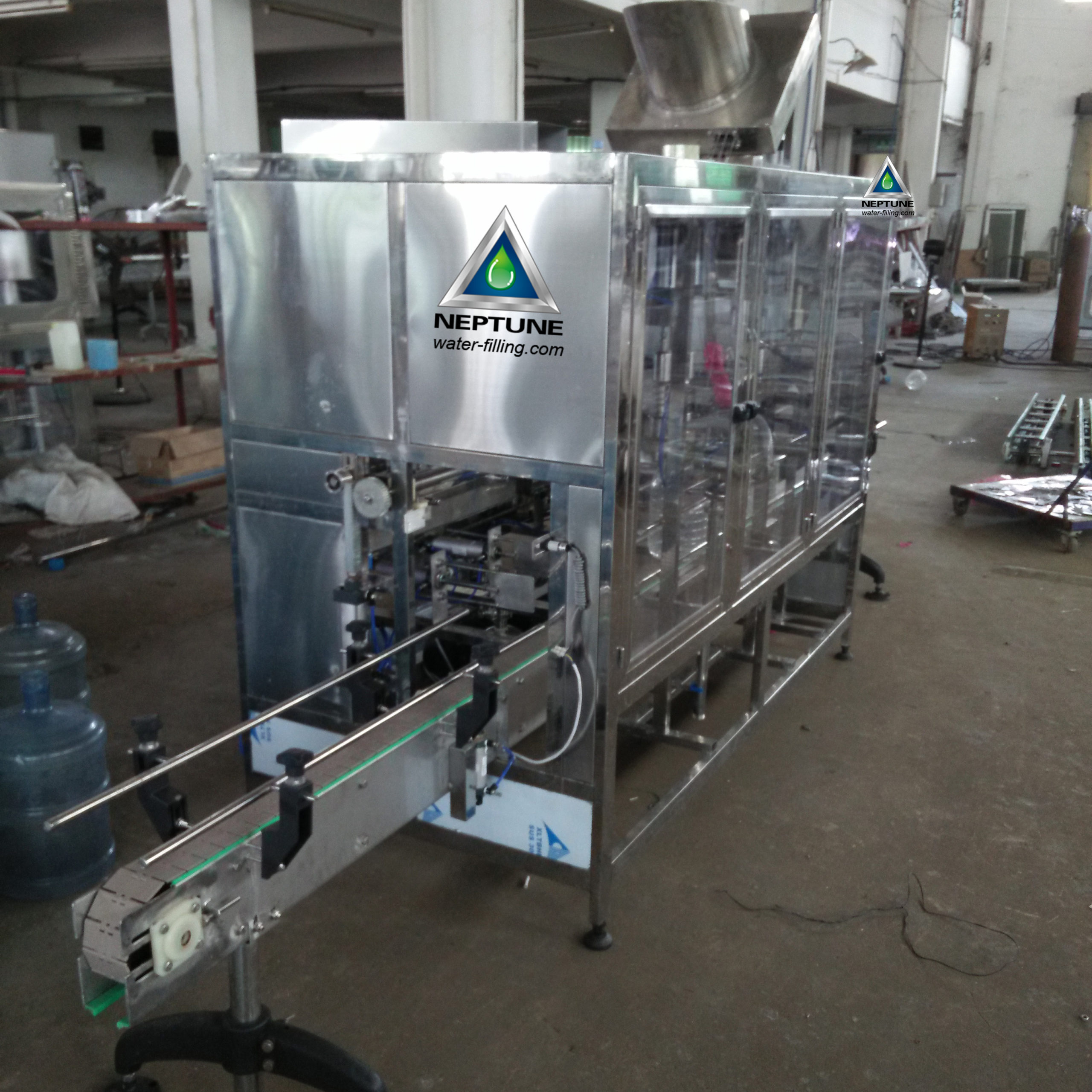

3-10Liter Bottle Water Filling Machine can be used to fill all kinds of 3L,4L,5L,6L,7L,8L,8L,9L,10L bottled water, It collects washing, filling and capping together.
Parameter
Bottle Volume: 3-10Liter
Production: 60-1500Bottles/Hour
Power : 3.5kw
10 bottles for setting and testing
Inlet conveyor 1meter
Outlet conveyor 1meter
PLC without touch screen
Stainless steel solenoid valve
Features

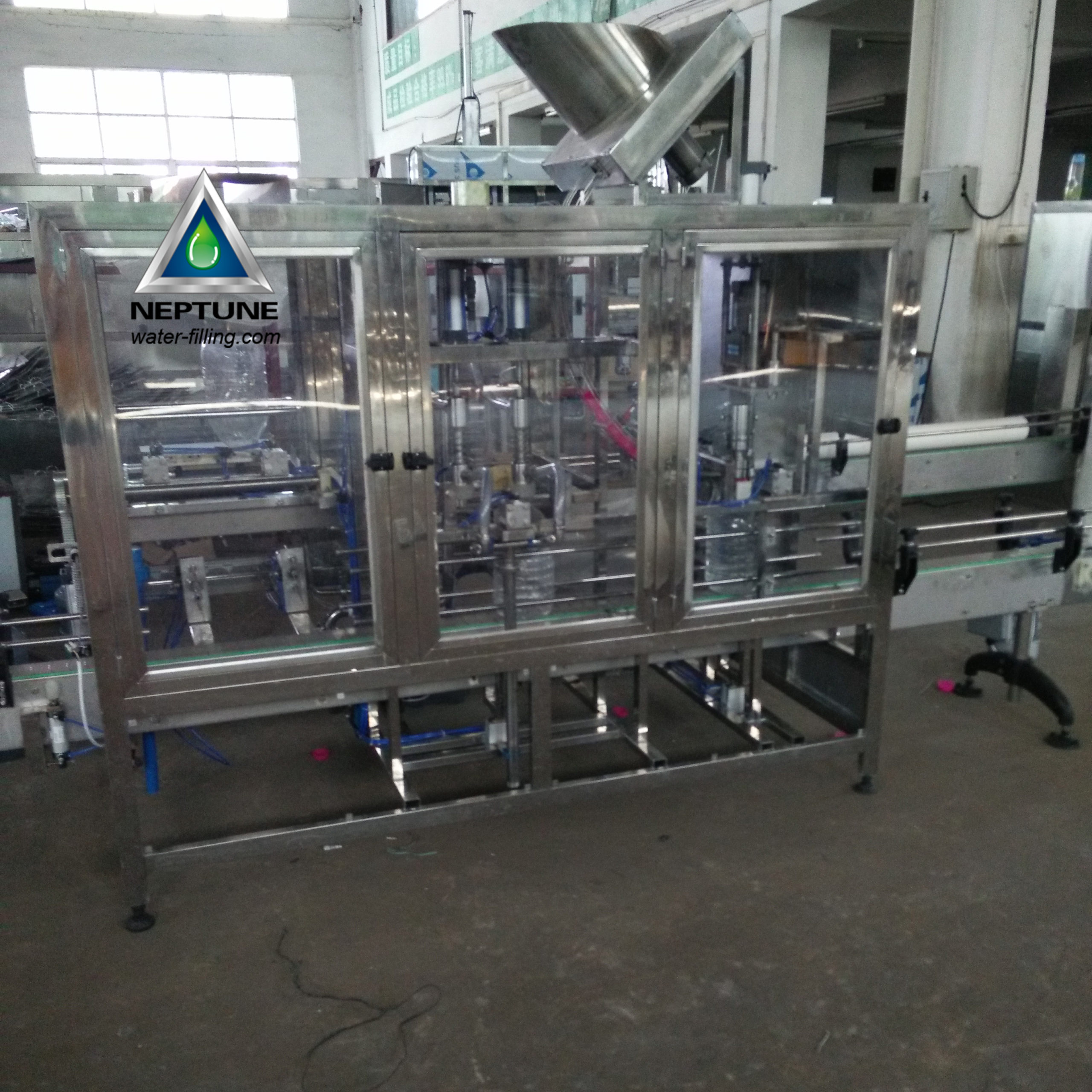

3-10Liter Bottle Linear Rinser Filler Capper Machine is high-automatic, operation reliable and convenient.It is aerodynamic and controlled by PLC. All filling heads working at the same time. It has bottle-gripping device to make sure 100% filling accuracy rate. It also has intellectualized protection programme control.
It is pressure filling and do no have any special requirement to user’s tank. It adopts closed type liquid tank and fixes with liquid level control system.
Main Part’s List :
| Leakage switch | Tianzheng |
| Circuit breaker | Beijing |
| Fuse | Tianzheng |
| Gear motor | Light transmission |
| Relay | OMRON |
| Programmable | LG |
| Air pressure switch | Korea |
| Push button switch | Shanghai. |
| Indicator lamp | Shanghai. |
| Proximity switch | OMRON |
| Air pressure electromagnetic valve | Taiwan Ya Deke |
| Oily water separator | Taiwan Ya Deke |
| Wash bottle bottle cylinder | Taiwan Ya Deke |
| Filling the cylinder | Taiwan Ya Deke |
| Capping cylinder | Taiwan Ya Deke |
| Bottle top cylinder | Taiwan Ya Deke |
| Bottle clamping cylinder | Taiwan Ya Deke |
| A bottle of cylinder | Taiwan Ya Deke |
| Capping machine | Shandong golden saint |
| AC contactor | LG |
| Medicine washing pump | Guangdong peak |
| Cleaning / filling pump | Guangdong peak |
| Sorting machine | Shandong golden saint |
| Net washing electromagnetic valve | Zhongshan |
| Filling valve | Guangdong Wing Chong |
| Switching power supply | Taiwan |
| Touch screen | Taiwan |
| The filling head | Guangdong |
| Screw head | Taiwan |
